Jaeger Tube & Disc Diffusers
For a quick and easy quotation, tell us which Jaeger tube or disc diffusers you require.
All enquiries welcome - special prices for large quantities.
A full range of Jaeger diffusers are usually available from UK stock - for more specialist items, we can import them, especially for you.
See below for more information on the Jaeger range.
Request a Quotation

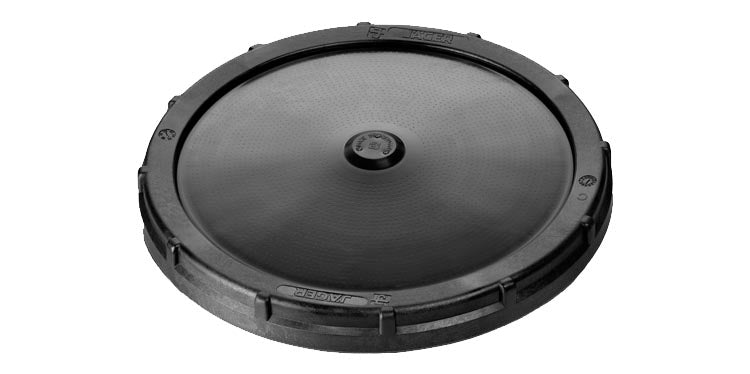

Jaeger Disc Diffusers
Disc diffusers vary in three key ways - membrane material, diameter and connection size.
These diffusers are suitible for koi pond and sewage treatment applicaitons.
Full specs are included in the datasheet.
-
Membrane Material most suitable for sewage treatment and pond aeration applications is EPDM - it is used for all standard variants of Jaeger diffusers. A silicone version is available on request.
-
Diameter is directly related to air output as the more surface area there is, the more holes there can be for air to pass through.
The Jaeger HD disc diffuser is available in two diameters - each has an ideal flow range.
270mm - 1 .5 to 6 m^3/h
340mm - 2 to 10 m^3/h
The sweet spot between performance and lifespan for each diffuser is around the middle of these ranges.
-
Connection size of both the HD270 and HD340 is a 3/4" tapered threaded connection.

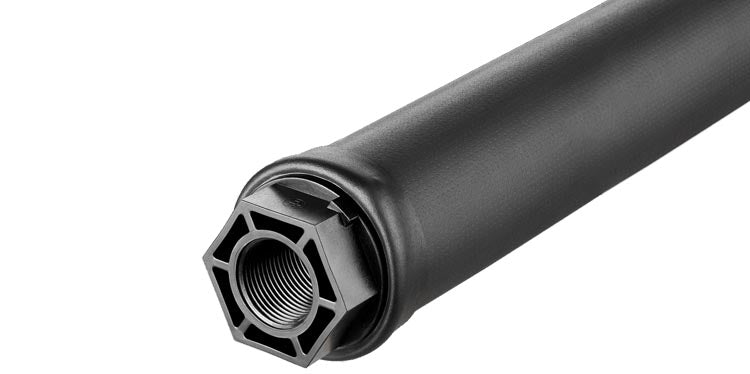

Jaeger JetFlex® TD 65-2 G Tube Diffuser
Tube diffusers vary in three key ways - membrane material, length and input connection size.
The end opposite the threaded connection opens to a large cavity that some people use to anchor the diffuser. This approach is helpful with pond and lake installations, or anywhere non-ridged pipe may be preferable.
These difusers are suitable for koi pond and sewage treatment applications.
Full specs are included in the datasheet below.
-
Membrane Material most suitable for sewage treatment and pond aeration applications is EPDM - used for all standard variants of Jaeger diffusers.
Additionally, silicone and PUR versions are available.
-
Length is directly related to air output as the more surface area there is, the more holes there can be for air to pass through.
The Jaeger JetFlex® TD 65-2 G Tube Diffuser is available in three lengths, and each have an ideal flow range.
500mm - 1 to 6 m^3/h
750mm - 1.5 to 9 m^3/h
1000mm - 2 to 12 m^3/h
The sweetspot between performance and lifespan for each diffuser is around the middle of these ranges.
-
Connection size of the JetFlex® TD 65-2 G is 3/4" as standard - a 1" version is available on request.
Most people connect these tube diffusers using a standard 3/4" BSP hose tail.
