Secoh Sangyo

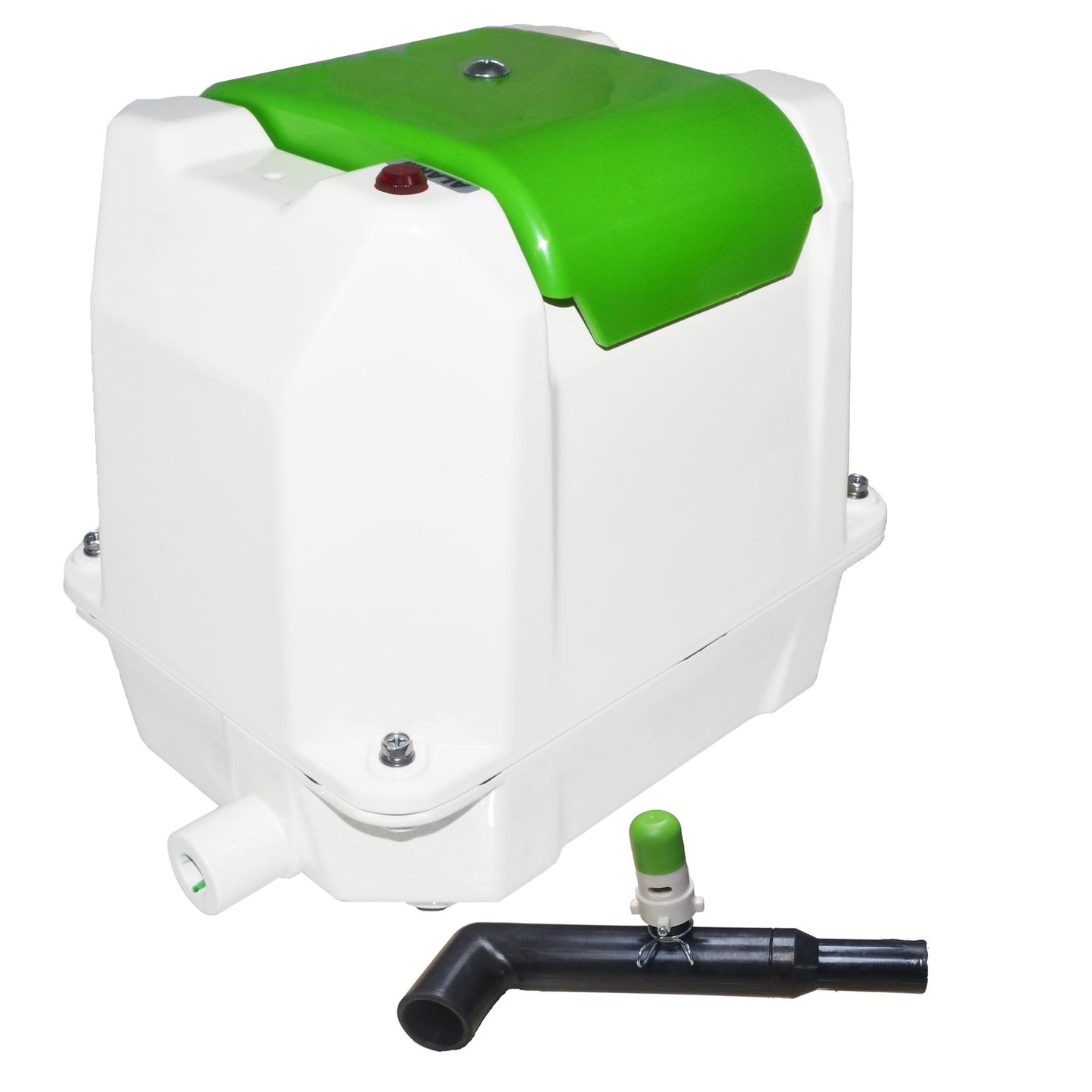

Secoh JDK-S-150 Single Air Pump & PRV

£307.99
£307.99
Sale Sold out | Enquire for options
Inc. VAT

Free next working day delivery terms*

Orders received before 13:00 on a working day will be dispatched on a next working day courier service, however, next day delivery can not be guaranteed.

Deliveries to Northern Ireland, and the Highlands and Islands usually take 2-3 working days.

Browse the Secoh range

JDK-S-60

JDK-S-60C

JDK-S-80

JDK-S-80C

JDK-S-100

JDK-S-100C

JDK-S-120

JDK-S-120C

JDK-S-150

JDK-S-150C

JDK-S-200

JDK-S-200C

JDK-S-250

JDK-S-250C

JDK-S-300

JDK-S-300C

JDK-S-400

JDK-S-400C

JDK-S-500

JDK-S-500C

JDK-S-150

  • Supersedes the EL-150
  • Free pressure relief valve (PRV)
  • Produces: 150l/m @ 200mbar
  • Low energy consumption: 115W @ 200mbar
  • Low Noise Level: 44 dB (A)
  • Very long lifespan
  • Protective switch inclusive
  • LED service light
  • Connecting hose included in delivery
  • Aluminium housing

*Updated version, comes with a UK three-pin plug.

Expected Output: JDK-150

Use this chart to estimate the output (flow) expected from the JDK-S-150 (AKA JDK-150) for a given backpressure.
For example, if you know the aeration depth of your system is 2m and there are no other factors causing resistance, the backpressure of the system would be around 200 mbar. On the graph, trace up from 200 mbar to the JDK-150 line, then over to the scale on the right. At a backpressure of 200 mbar, the JDK-150 would produce an estimated flow rate of 150l/min.

  • The new JDK pumps feature full UKCA certification, ensuring it meets the latest UK standards for safety, quality, and performance.

    Designed specifically for the UK market, this certification provides peace of mind and guarantees a reliable, high-quality product built to the highest regulatory standards.

  • The new JDK pumps now include a UK three-pin plug as standard, offering added convenience for immediate use.
    For those requiring hardwiring, the plug can be safely removed without affecting the warranty, ensuring flexibility and peace of mind for all installation requirements.

  • Use Less Energy

    The JDK models feature less energy consumption (up to 30% depending on the application) and fewer overall dimensions (also by about 30%) compared to the SLL and EL series. This makes the class not only more compact but also lighter.

  • Long Life Expectancy

    Motor and pump parts are combined in one single construction. The compact and light construction form and the simple mechanism guarantee a long and reliable period of operation.

  • Energy Efficient

    The principle of electromagnetic oscillation, which practically has no mechanical friction, minimises power consumption and provides a high degree of efficiency.

Pump Details

The JDK-S-150 (JDK-150) outputs around 150l/min at a back pressure of 200 mbar. At this backpressure, it would consume only 115W per hour, which is very low, making less of an impact on the environment and costing less to run.
The JDK-150 operates at only 44 dB(A), which is very quiet – for reference, a refrigerator is about 40 dB. The JDK-150 will not produce significant noise pollution, keeping the local wildlife and your neighbours happy.

  • Low Noise Level

    The soundproof casing and the muffler integrated into the tank base reduce operating noise.

  • Low Vibration

    Motor and pump parts are separated by a vibration-isolating rubber, so only low vibration consists.

  • Completely oil-free

    The oil-free operation guarantees a dry and unadulterated airflow.

Spares Guide

All the spares you will ever need for your JDK-150 are typically immediately available and will be for a long time to come. For reference, the spare parts for the JDK-150's predecessor (EL-150) are still widely available even though it has been many years since the EL range became discontinued.

  • Weatherproof

    The SLL, EL, and JDK series are rainproof and weatherproof. However, they should not be exposed to direct sunlight, rain, or snow.

  • Pulsation-free airflow

    Specially formed pump chambers and the muffler integrated into the tank base provide an airflow, which is practically pulsation-free.

  • Universal service kits

    For each model series, service kits are available. They are vacuum-packed in aluminium foil for better and longer life/ storage.

Full Secoh JDK Range

To see the complete range of Secoh JDK pumps, click below.
The collection includes all sizes of the JDK pumps from 50 - 500 l/m.

View Range
