• Repair kit for an LA-60E
1 2

Nitto Kohki

Nitto Kohki Medo LA-60E Repair Kit

£89.99
£89.99
Sale Sold out | Enquire for options
Inc. VAT

Free next day delivery*

Orders received before 13:00 will be dispatched on a next working day courier service, however, next day delivery can not be guaranteed. There is a small charge for deliveries to the Highlands and Islands and it usually takes 2-3 working days.

Browse the Medo range

Medo LA-28B

Medo LA-45C

Medo LA-60B

Medo LA-60E

Medo LA-80B

Medo LA-80E

Medo LA-100A

Medo LA-120A

Medo LAM-200

Medo LA-28B Repair Kit

Medo LA-45C Repair Kit

Medo LA-60B & LA-80E Repair Kit

Medo LA-60E Repair Kit

Medo LA-80B Repair Kit

Medo LA-100A & LA-120A Repair Kit

Medo LA-150 & LAM-200 (Pre 2015) Repair Kit

Medo LA-150 & LAM-200 (Post 2015) Repair Kit

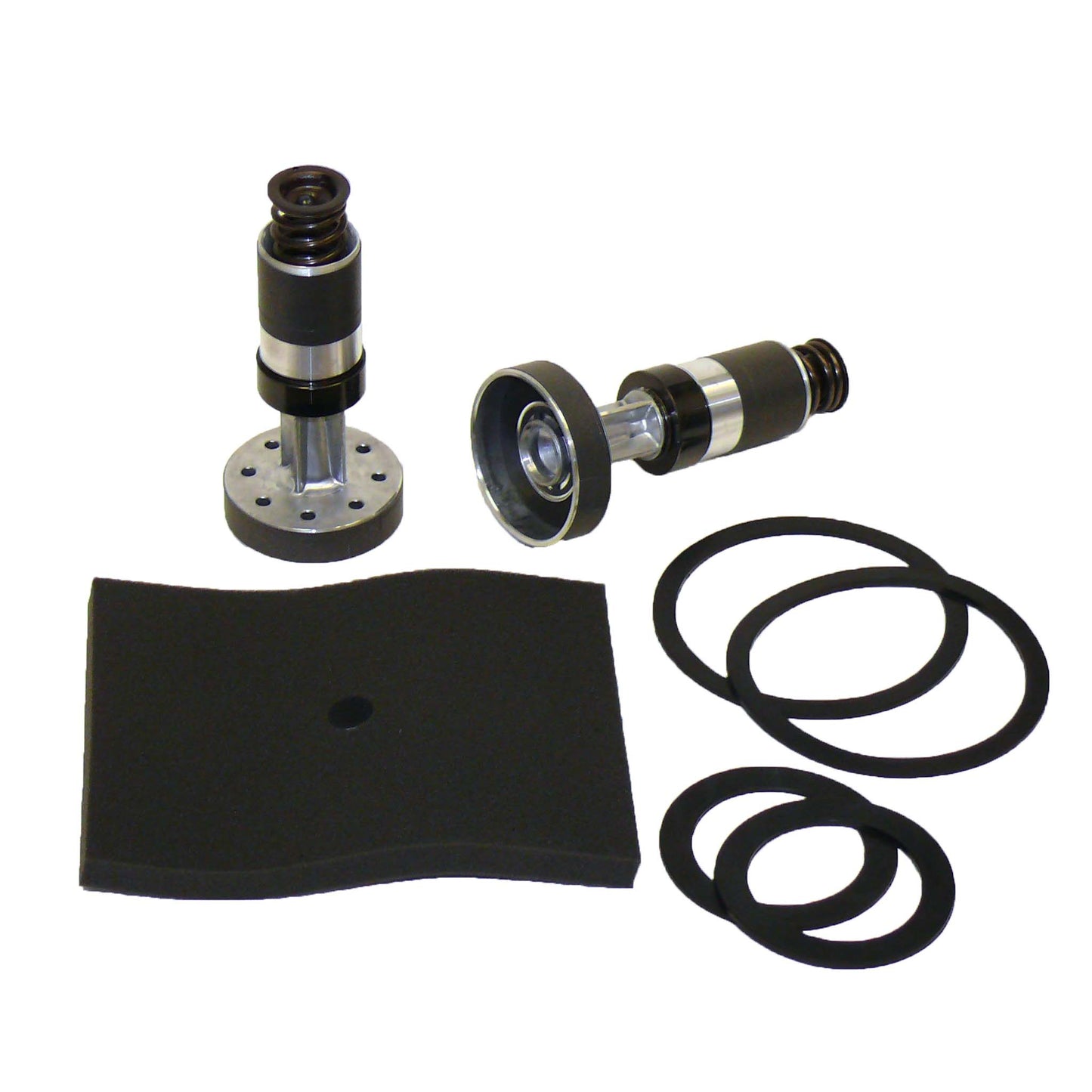

Nitto Kohki Medo LA-60E Repair/Service Kit Includes

  • 1 x Filter element
  • 2 x Gasket A (seal)
  • 2 x Gasket B (seal)
  • 2 x Piston
  • 2 x Spring seat
  • 2 x Spring
  • 1 x Instructions

Chick here for LA-60B repair kit (LB03519).

Medo LA-60E Repair/Service Kit in Detail

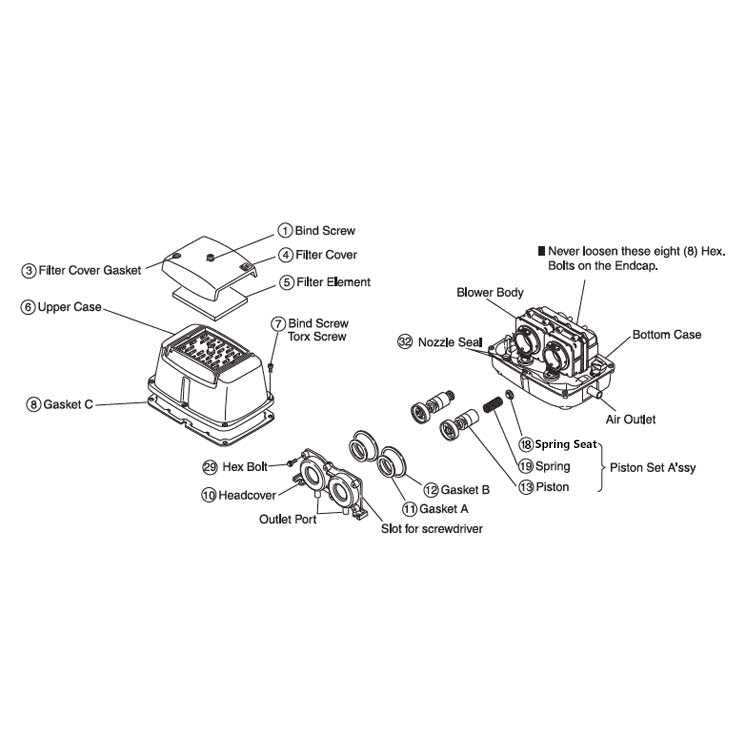

The exploded view of the Medo LA-60E shows all its parts, including those contained in this repair/service kit.
The spring seat (18), spring (19) and piston (13) make up the complete piston assembly. To the left of the piston assembly are gasket A (11) and gasket B (12) - they create the required seal. The filter element (5) sits between the filter cover and the upper case, and improves the air quality entering the pump.

  • Easy Maintenance

    It is easy to maintain Medo pumps as they are designed from the ground up to be completely serviceable by the end-user.

  • Long Life Expectancy

    Medo pumps are widely known for their incredible build quality, resulting in an ultra-long lifespan.

  • Piston Driven

    The Medo range all opperate using pistons rather than diaphragms. As a result, they last for a very long time before needing a service.

Full Medo Range

To see the complete range of Nitto Kohki Medo pumps and accessories, click below.
The collection includes all the standard Medo pumps and the incredibly efficient eco range, which uses less power to produce the same flow.
